TC3130

1W@30K + 4W@77K

Descriptions

A two-stage free-piston Stirling cryocooler that uses a single gas-bearing piston compressor and a stepped displacer. It has a high power density, small size, and light weight. Its rotationally symmetric design (SymCoolTM) makes it especially suitable for infrared optical systems.

Features

Rotationally symmetric design for easy integration with optical systems.
High power density, light weight and small size.
Motor stator isolated from gas chamber, long lifetime and high reliability.
Built-in drive controller for compact and convenient use.

Specifications

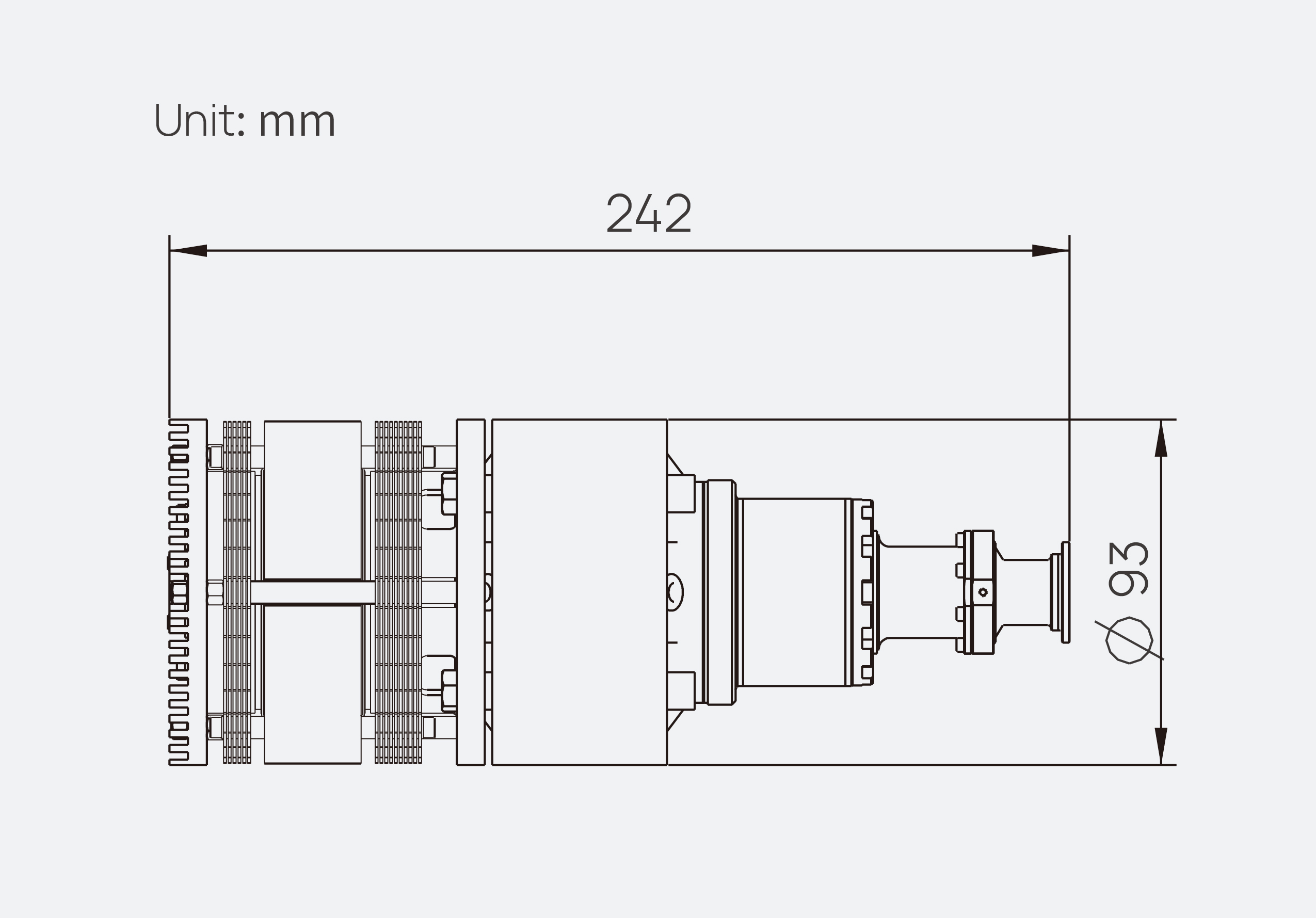

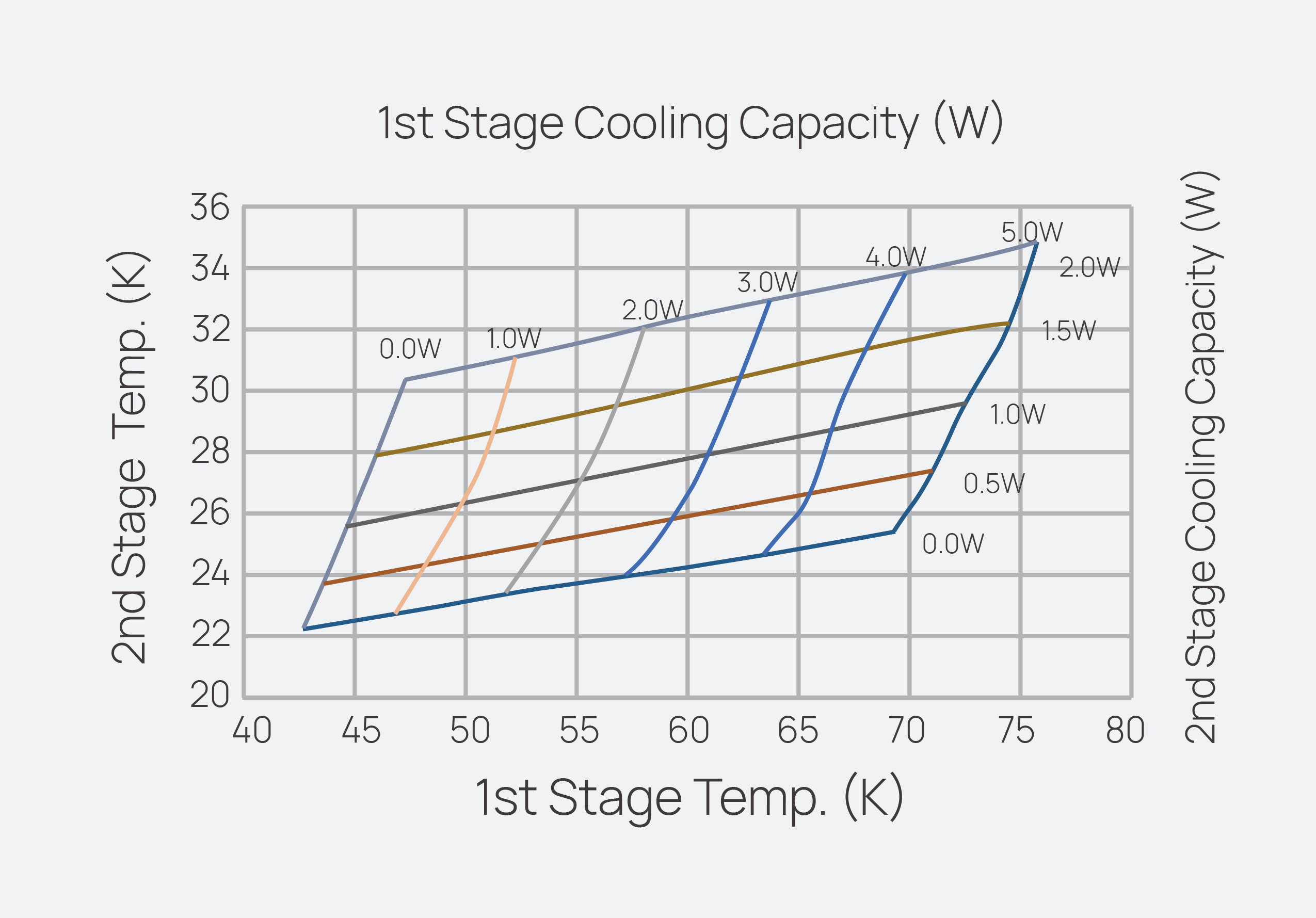

Cooling Capacity (20℃ reject)	1W@30K + 4W@77K
Rated Input Power	195 W
Power Supply	DC 48V(15A)
Weight	4 kg
Temperature Stability	±0.1 K
Ambient Temperature Range	-20℃ ~50℃
MTTF（hrs Goal)	50000
