TC26G0

0.65W@160K

Descriptions

A linear micro-sized free-piston Stirling cryocooler designed for infrared thermal imaging applications. It comes with IDCA (Integrated Dewar Cooler Assembly) packaging and offers low vibration, long lifetime, high reliability, high integration and ease of use.

Features

Linear gas-bearing compressor, long lifetime.
Single piston configuration, light weight and small size.
Built-in active damper with extremely low vibration.
Built-in controller for high integration and ease of use.
Maintenance-free.

Specifications

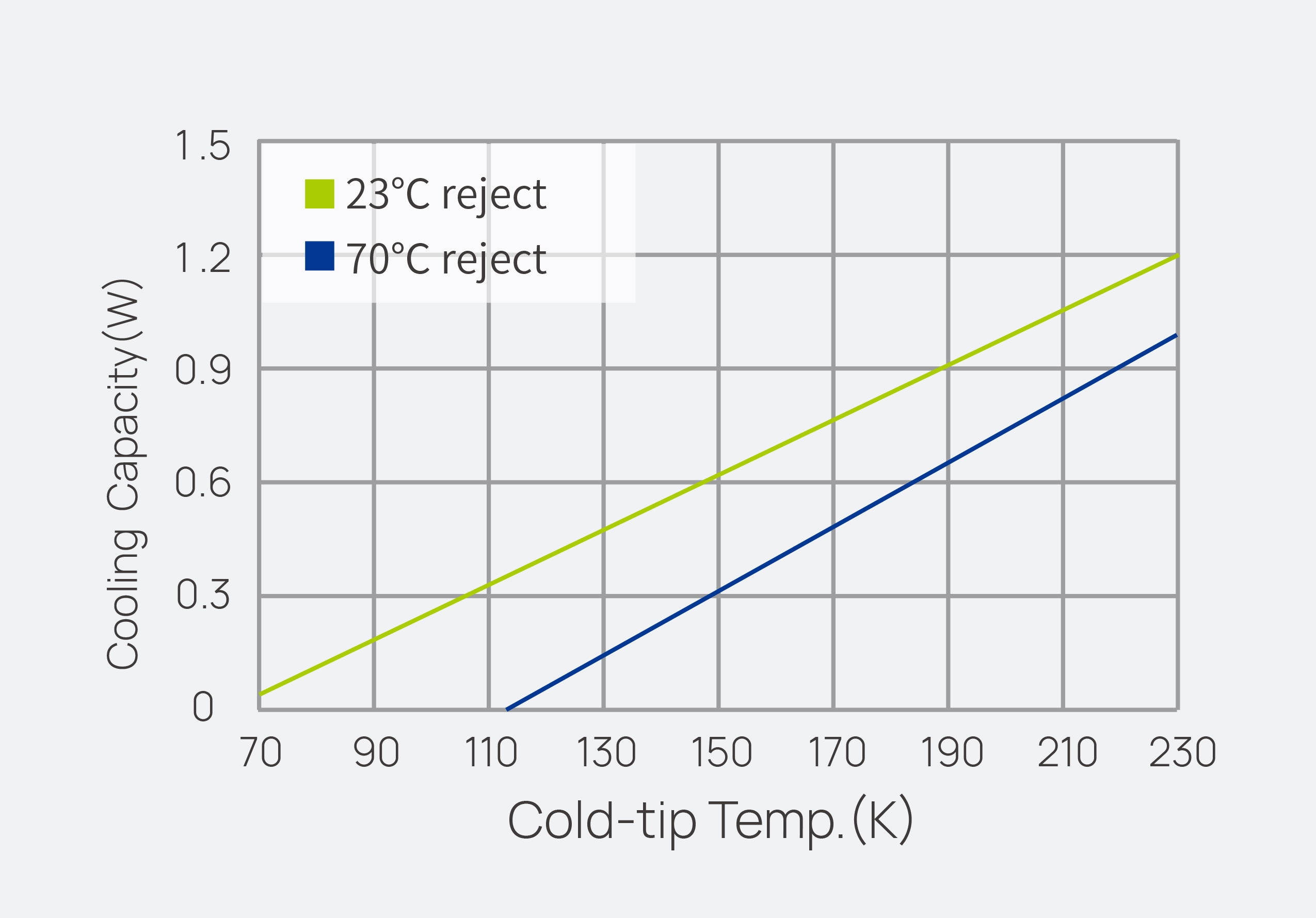

Cooling Capacity (20℃ reject)	0.65W@160K
Rated Input Power	7 W
Power Supply	DC 12V(4A)/ DC 24V(3A)
Weight	260 g
Temperature Stability	±0.2 K
Ambient Temperature Range	-40℃ ~ 70℃
MTTF（hrs Goal)	50000
