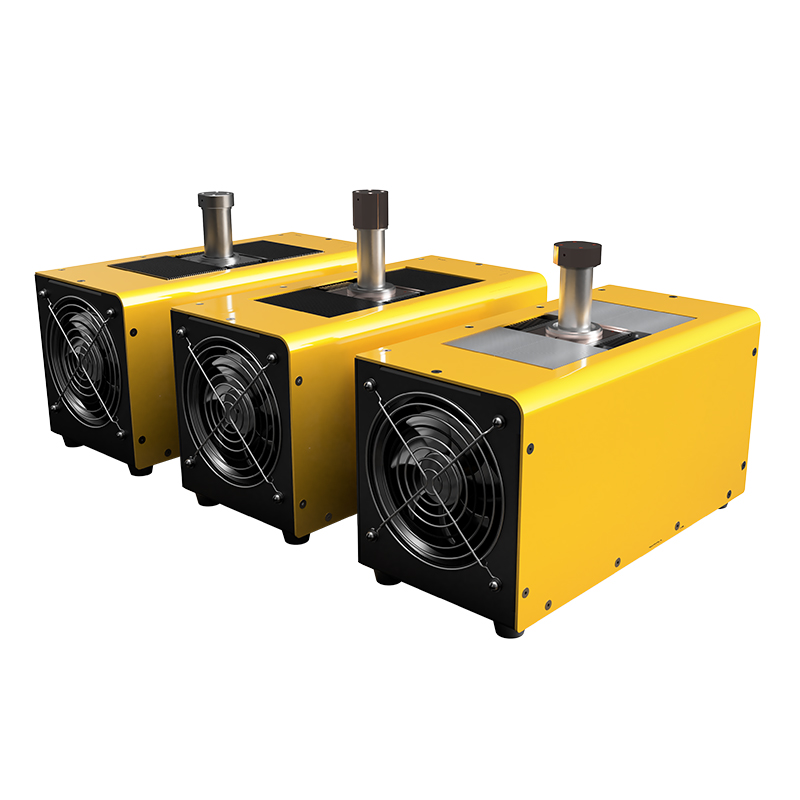

TC4188 / TC4189 / TC4289 ap1

10-20W@77K

Descriptions

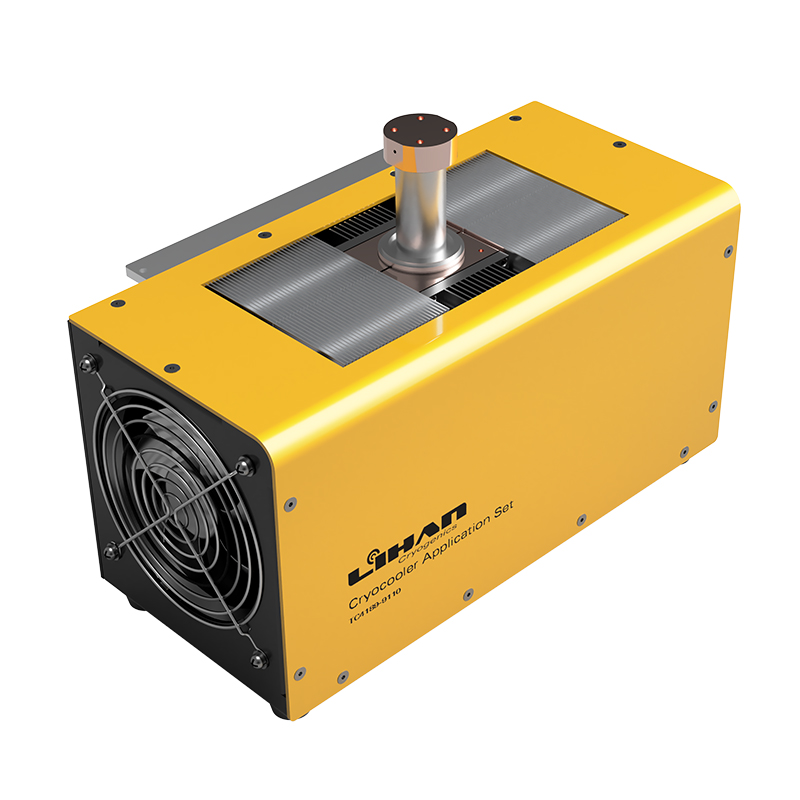

This is specailly designed for ease of use and is compatible with cryocoolers, providing 10W to 20W of cooling capacity at 77K , including models TC4188、TC4189 and TC4289. It includes an integrated heat pipe radiator and fan, and allows for the external mounting of the drive electronics. Users simply need to connect a 48v power supply to operate .

Typical Applications

HTS filters、HPGe detectors、 enviroment monitoring

Specifications
