LC4792
70W@90K
Descriptions
A high-performance hybrid pulse tube cryocooler that uses an opposed dual gas-bearing piston and an orthogonal layout dual ambient gas bearing displacer for phase shifting and recovering acoustic power. It combines the advantags of both pulse tube cryocoolers and Stirling cryocoolers and leads to a cryocooler with high reliability, high efficiency and low vibration at the cold head. This product is designed as a general-purpose low-temperature cryocooler for mass production, with outstanding economic advantages.
Features
  • Dual-opposed gas bearing pistons driven by linear motors. long lifetime.
  • Pulse tube cold finger integrated with dual-opposed ambient displacers, acoustic power recovery and high efficiency.
  • Integral configuration, easy installation and operation.
  • Motor stator isolated from gas chamber, long lifetime and high reliability.
  • Integrated water jacket, easy to use.
  • Maintenance-free.
Specifications
Cooling Capacity (20℃ reject) 70W@90K
Rated Input Power 1000 W
Power Supply AV 220V / AC 110V
Weight 17 kg
Temperature Stability ±0.1 K
Ambient Temperature Range -20℃ ~ 50℃
MTTF(hrs Goal) 120000

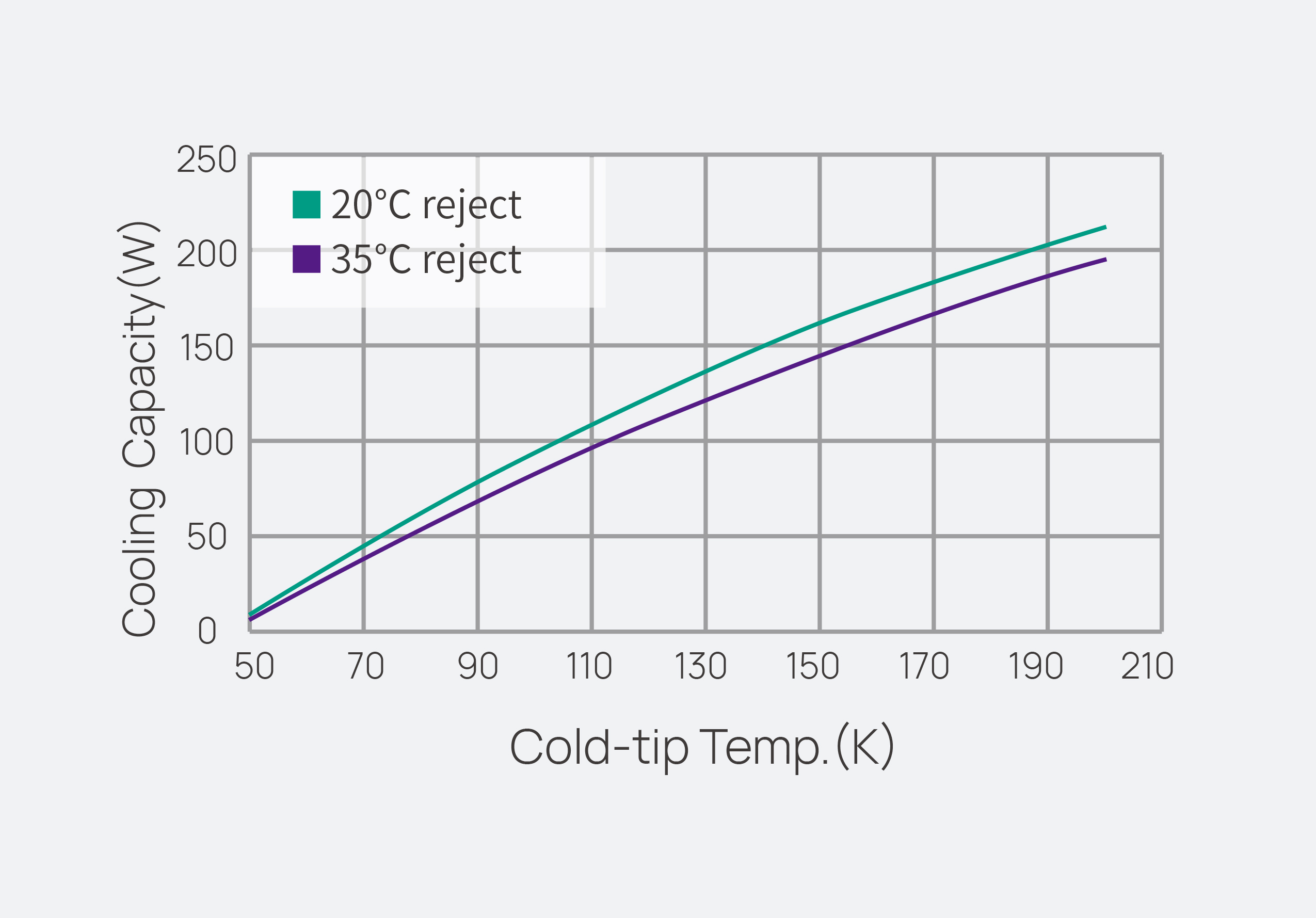

Typical Performance

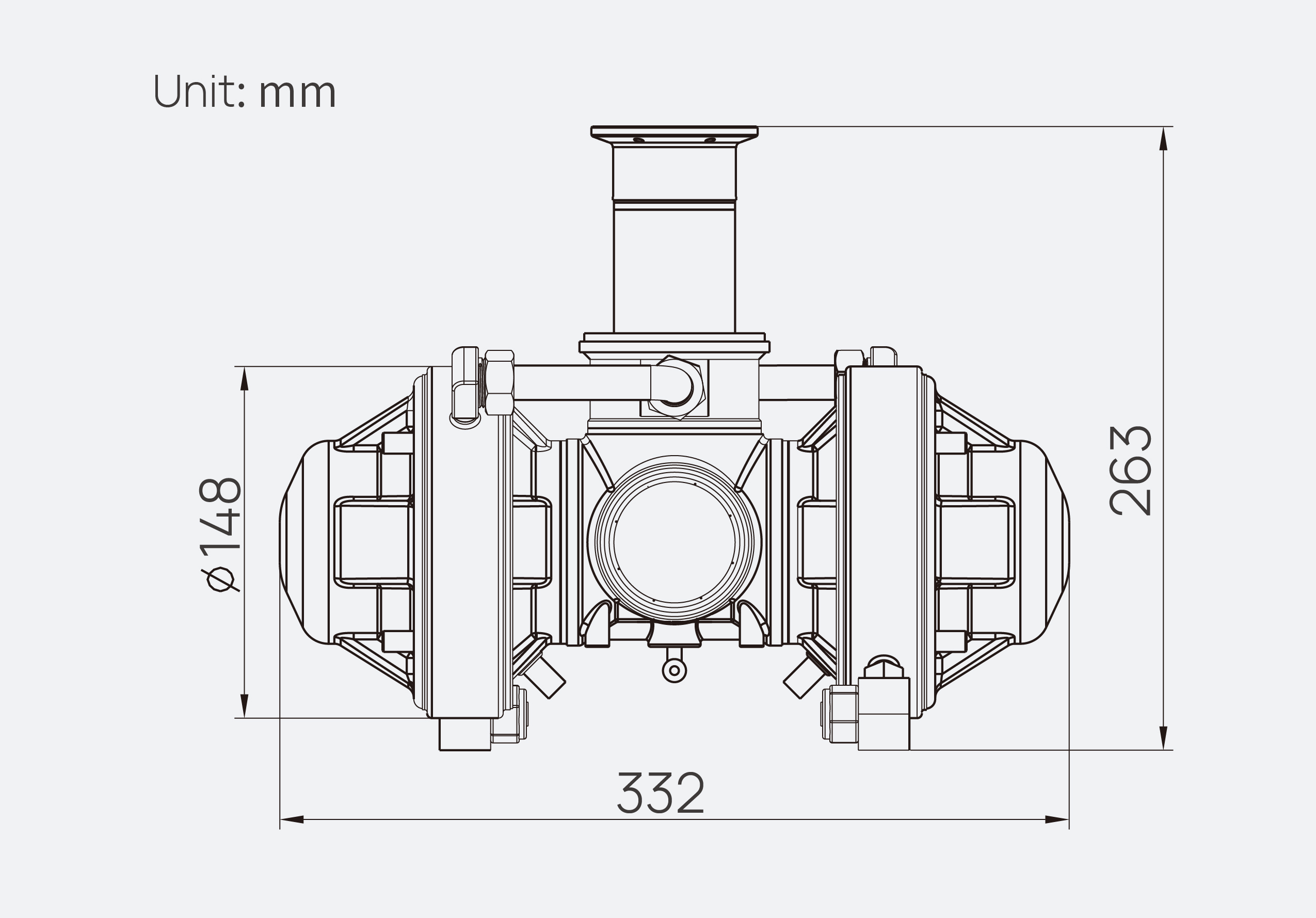

Dimensions
Drive Electronics
1.5kW / AC90-240V
Input Voltage Range
90~240V
Max. Input Power
1500W
Rated Output Power
1200W
Weight
2.4 kg
Regulatory Certifications
CE
Demensitons (length X width X height)
280X 189X 60 mm³
