LC4830
80W@30K+40W@77K
Descriptions
A high-performance hybrid two-stage pulse tube cryocooler that uses an opposed dual gas-bearing piston and an orthogonal layout dual ambient gas bearing displacer for phase shifting and recovering acoustic power. It combines the advantags of both pulse tube cryocoolers and Stirling cryocoolers and leads to a cryocooler with high reliability, high efficiency and low vibration at the cold head. Due to its unique orthogonal structure (OrthoCoolTM), it has excellent compactness, shock resistance, overturnable, maintenance-free, and long lifetime, making it an upgraded product for traditional low-temperature cryocoolers (such as GM types). This product is aimed at cooling dry type superconducting magnets, superconducting power transmission cables or for cryopumping purposes, etc.
Features
  • High efficiency for energy saving
  • Extremely compact low-temperature cryocooler structure for easy installation and use
  • Extremely low noise and vibration for wide range of applications
  • Shock-resistant and vibration-resistant, with a wide range of environmental temperature adaptability
  • Overturnable, suitable for mobile applications
Specifications
Cooling Capacity (20℃ reject) 80W@30K+40W@77K
Rated Input Power 6000 W
Power Supply AC 380V
Weight 82 kg
Temperature Stability ±0.1 K
Ambient Temperature Range -40℃ ~ 50℃
MTTF(hrs Goal) 120000

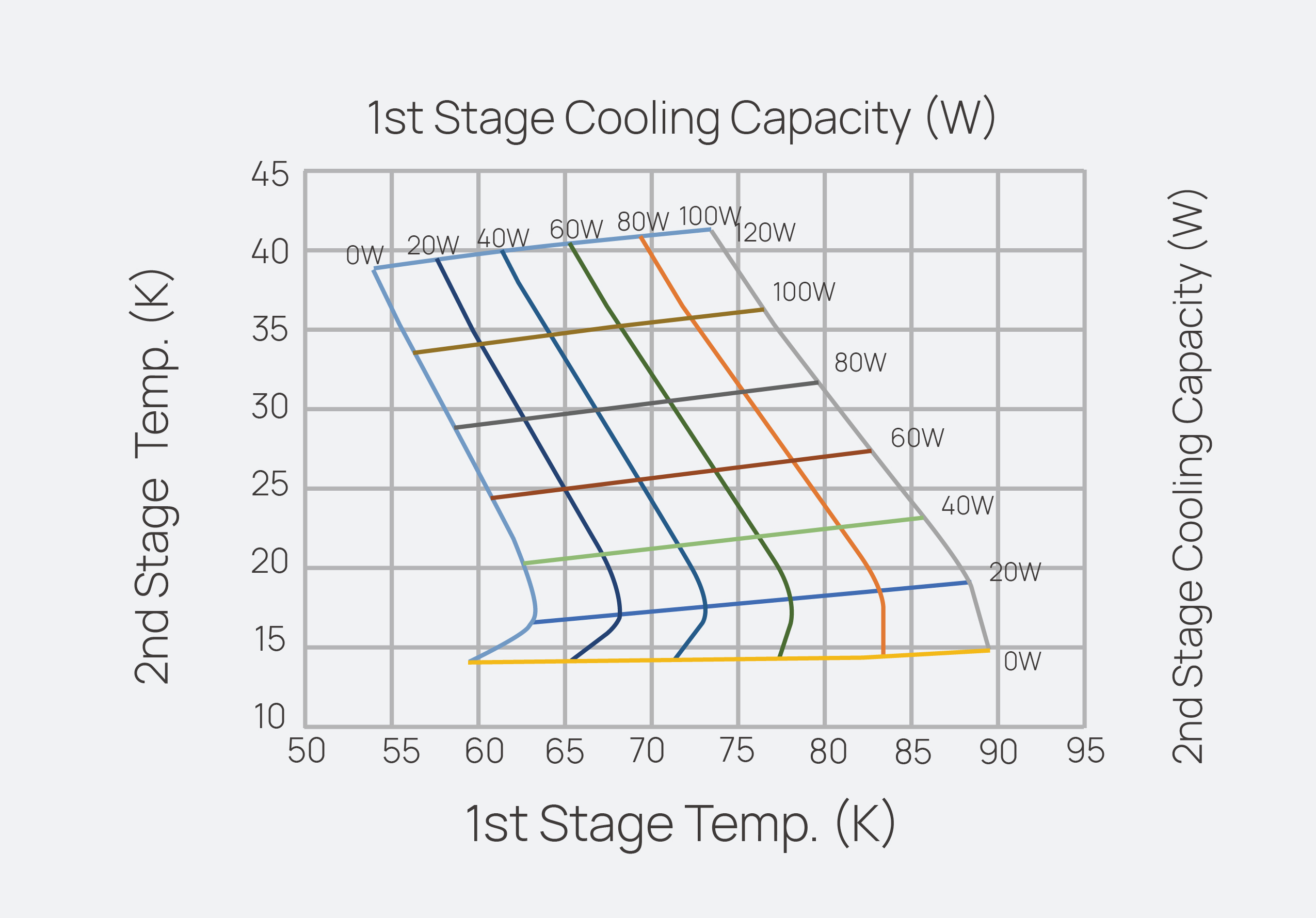

Typical Performance

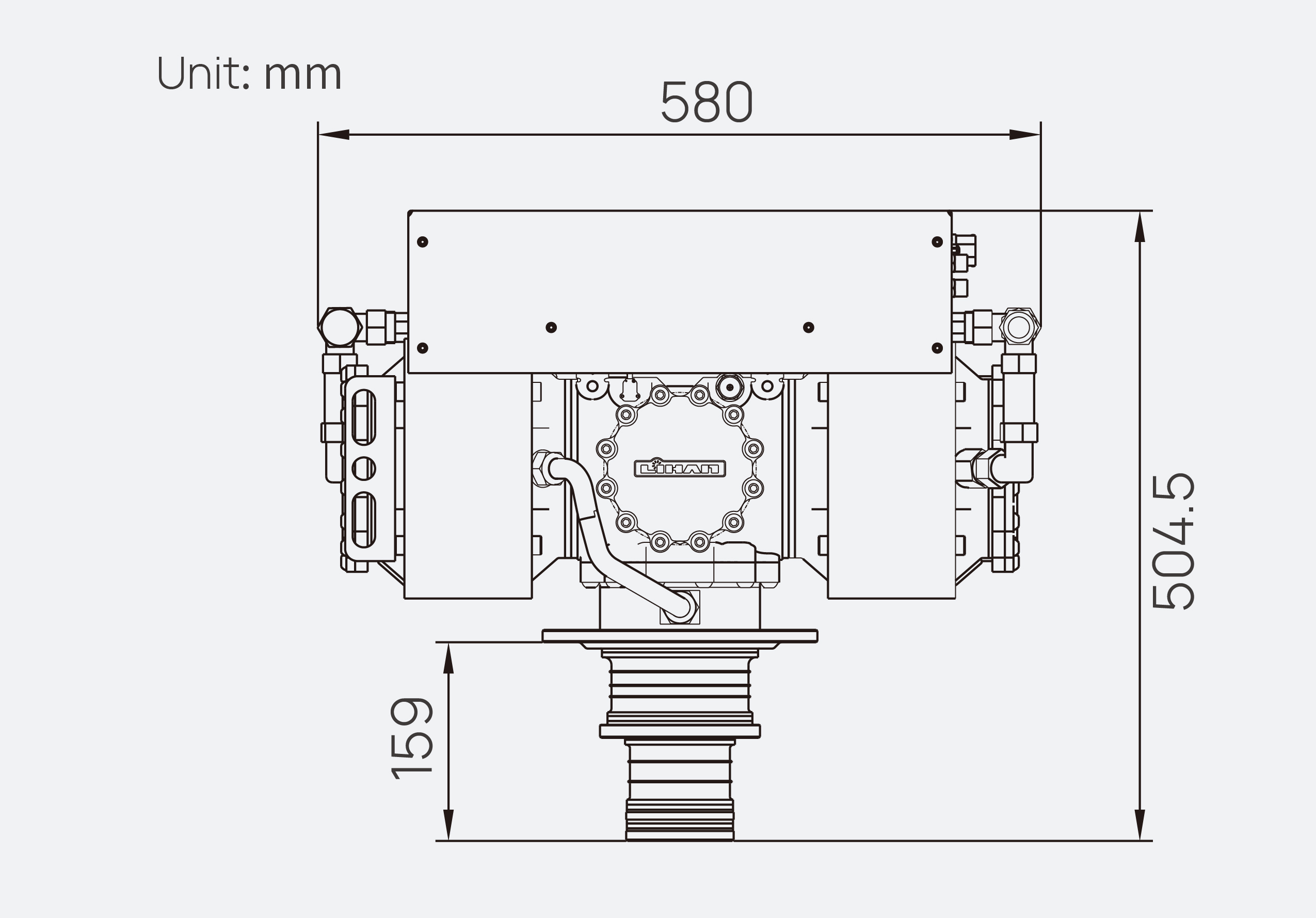

Dimensions
