CT5221

200W / DC24V

Descriptions

24V voltage input to the cooler driver. DSP control to generate symmetrical two-way SPWM drive waveforms. Low vibration and Low noise.

Features

Dual symmetrical drive to minimize cooler vibration.
Integrated sensor interfaces for cold head temperature and reject temperature for ease to use.
Optional acceleration sensor for active damping, further reducing vibration.

Specifications

Input Voltage Range	24V±10%
Max. Input Power	300 W
Rated Output Power	200 W
Weight	0.296 kg
Regulatory Certifications	CE
Demensitons (length X width X height)	120X 74X 40 mm³

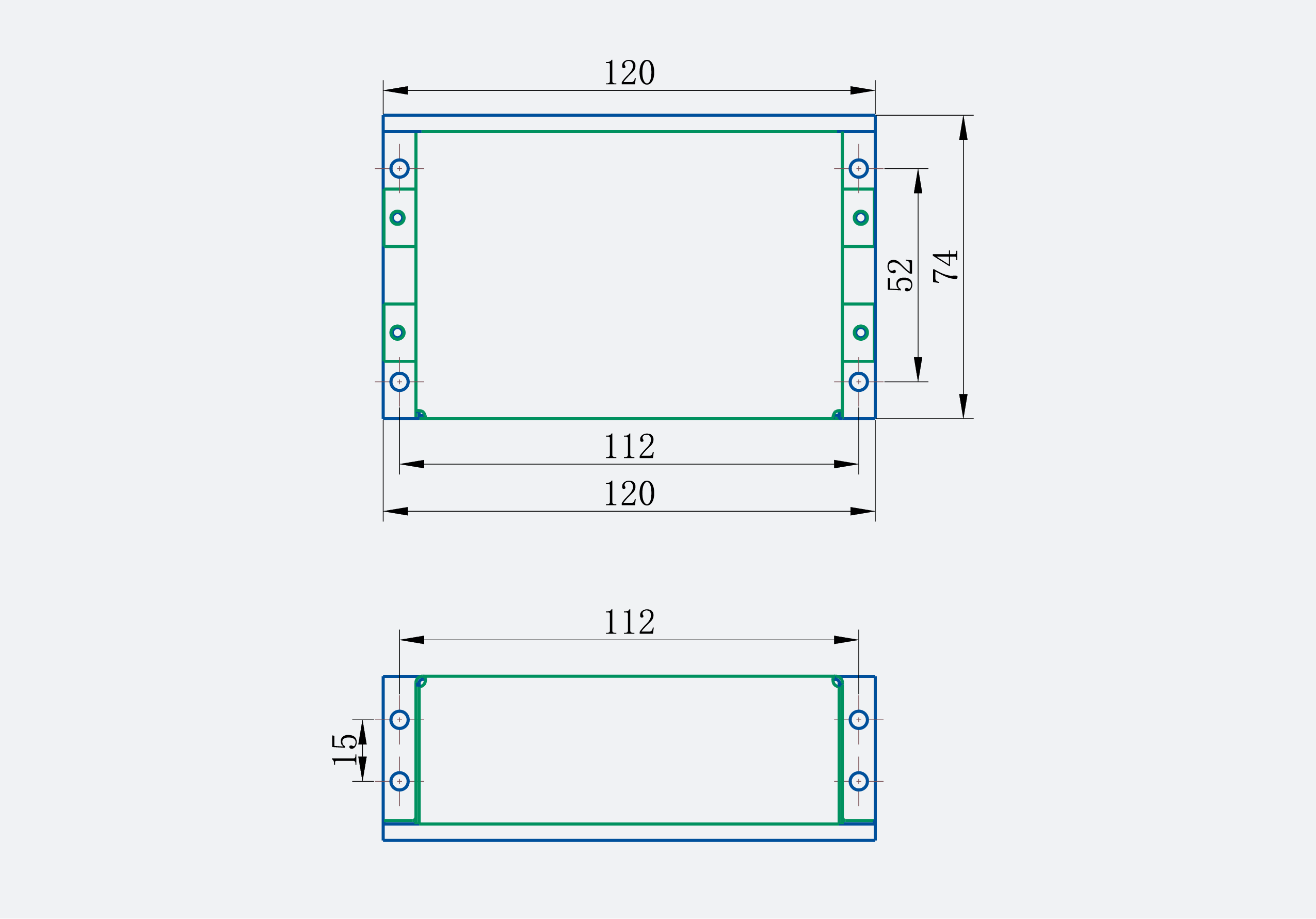

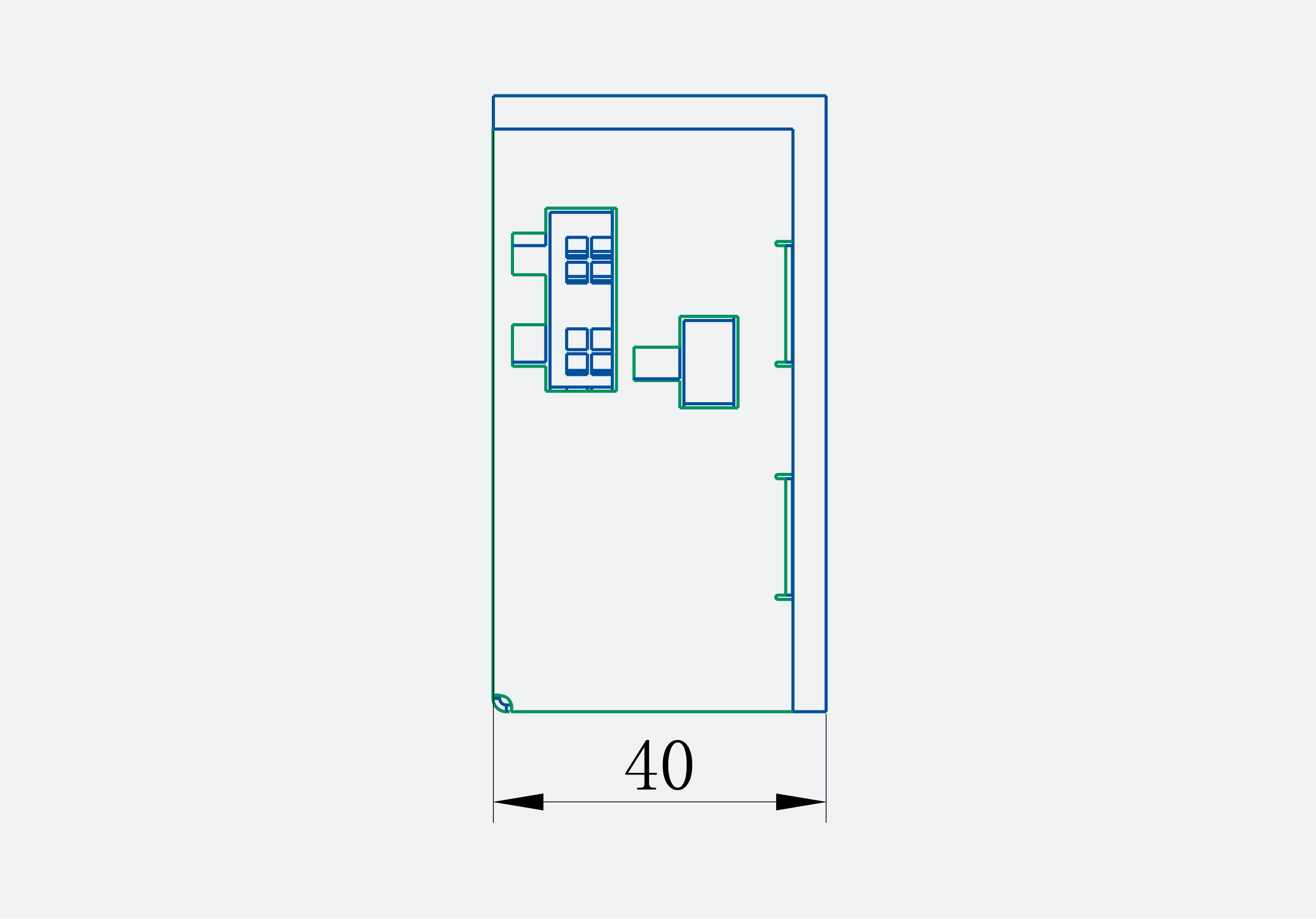

Dimensions

Related Products

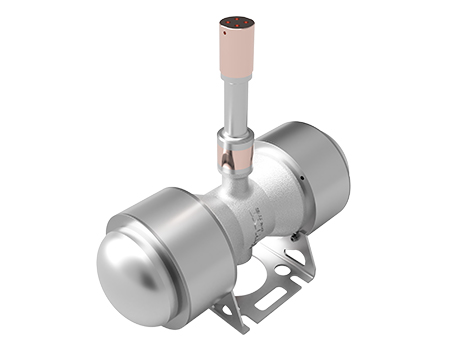

TC3380
