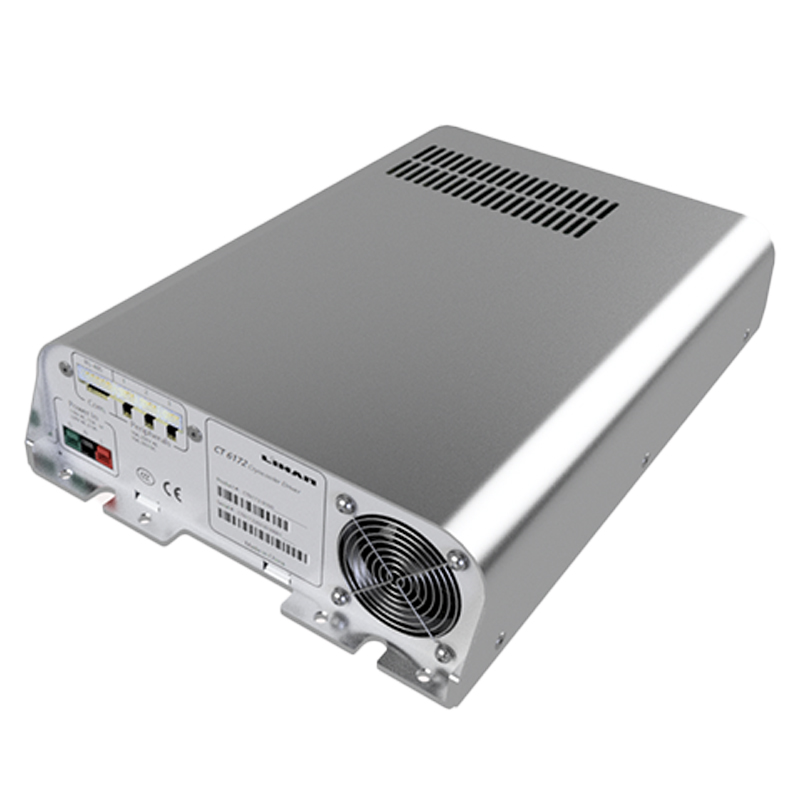

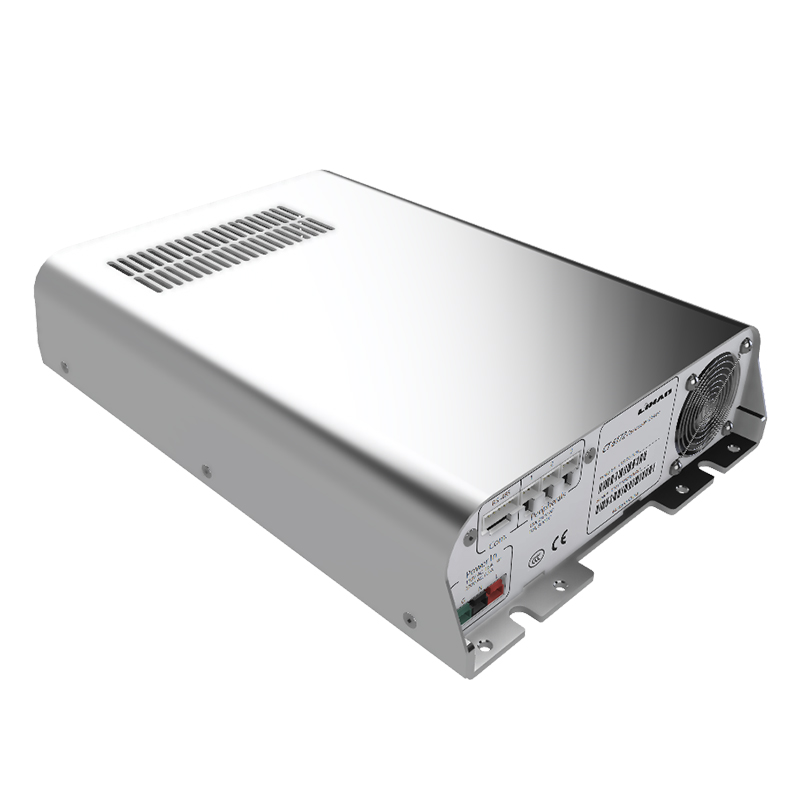

CT6172

1.5kW / AC90-240V

Descriptions

110V/220V mains voltage input to the cooler driver. DSP control is used to output a single SPWM drive waveform.

Features

Wide voltage input, meet to most international national power supply standards.
Active power factor correction, power factor reaches above 0.95.
Integrated cold head temperature, reject temperature and other sensor interfaces, easy to use.

Specifications

Input Voltage Range	90 - 240V
Max. Input Power	1500W
Rated Output Power	1200W
Weight	2.4 kg
Regulatory Certifications	CE
Demensitons (length X width X height)	280 X 189 X 60 mm³

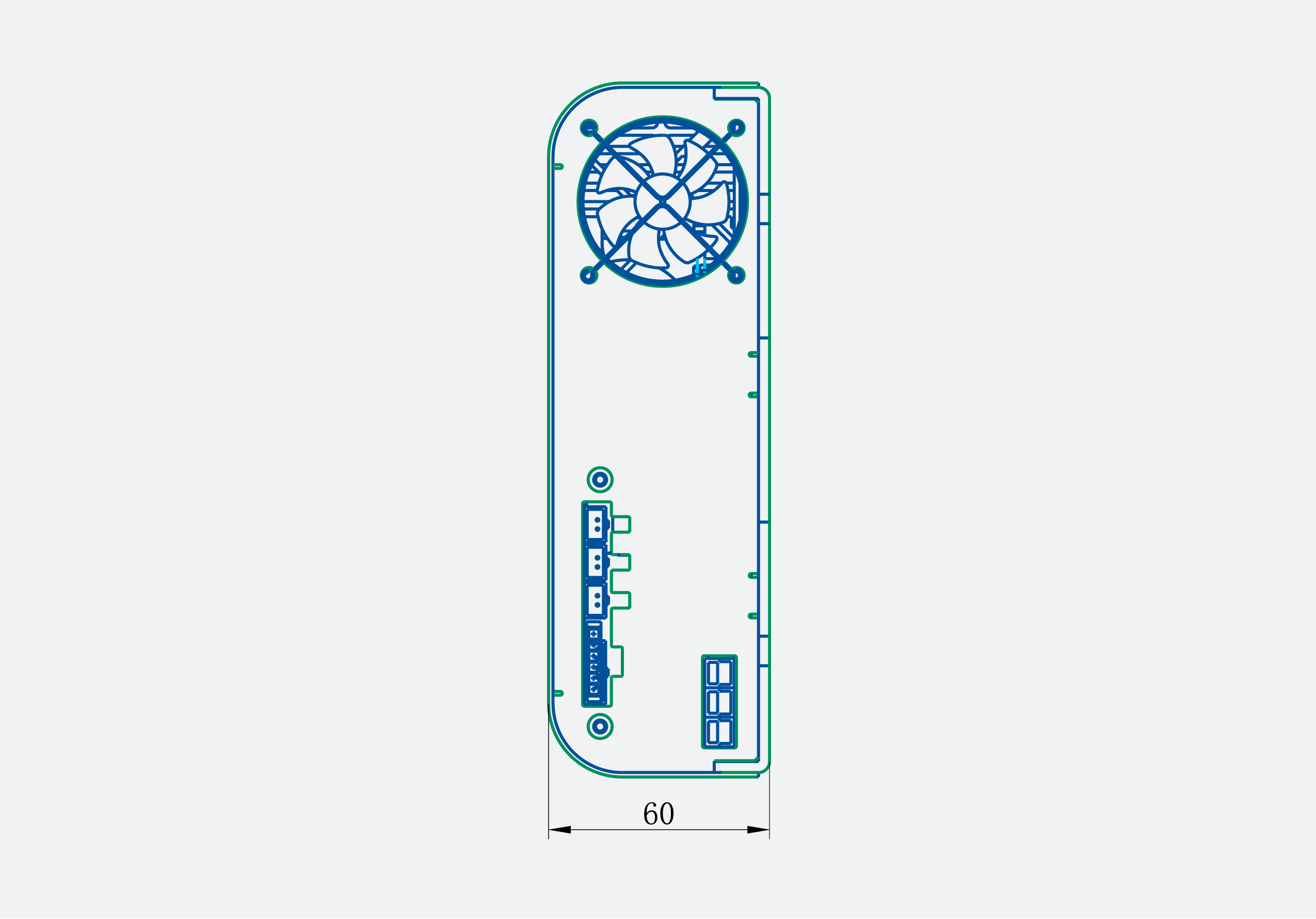

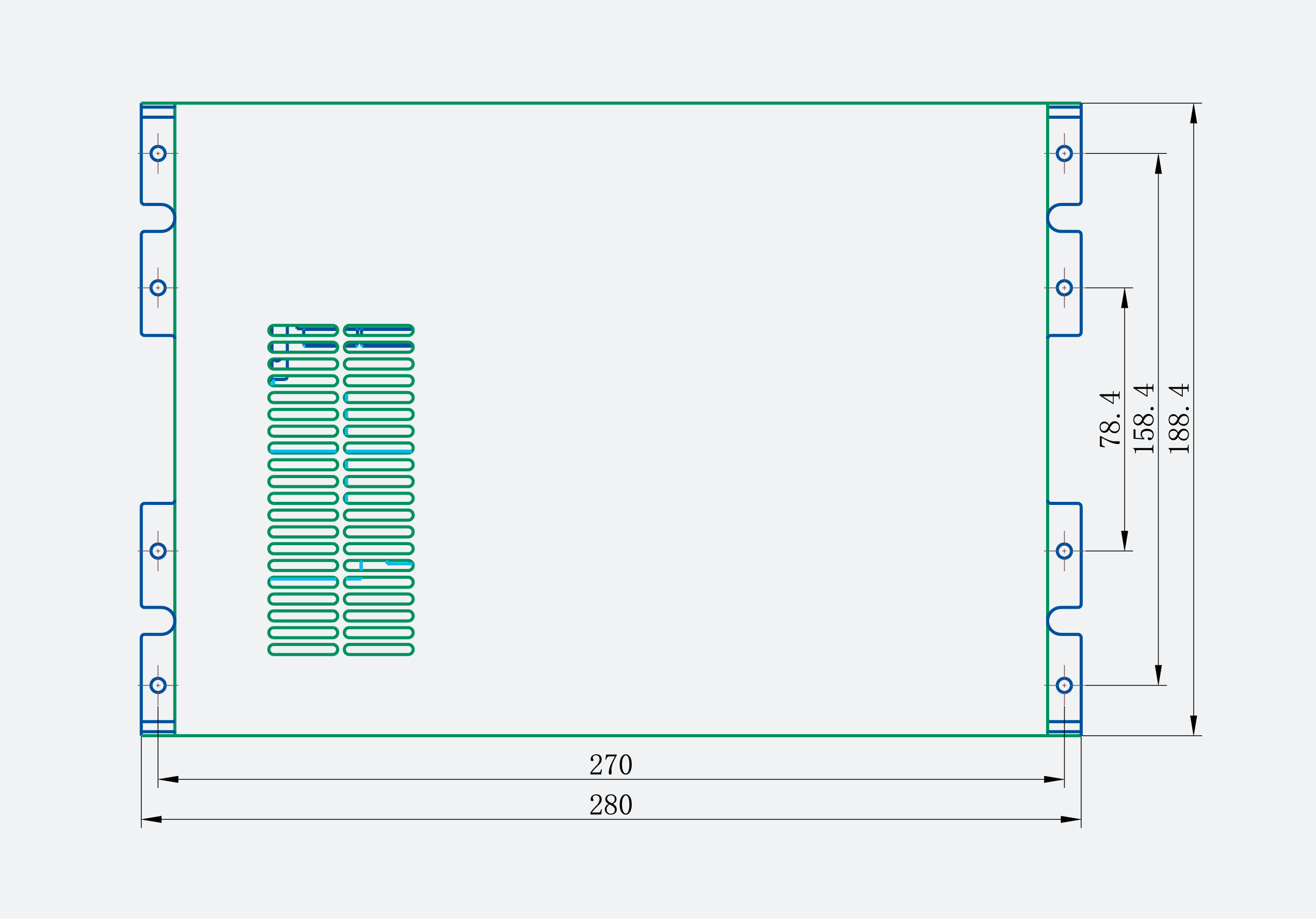

Dimensions
