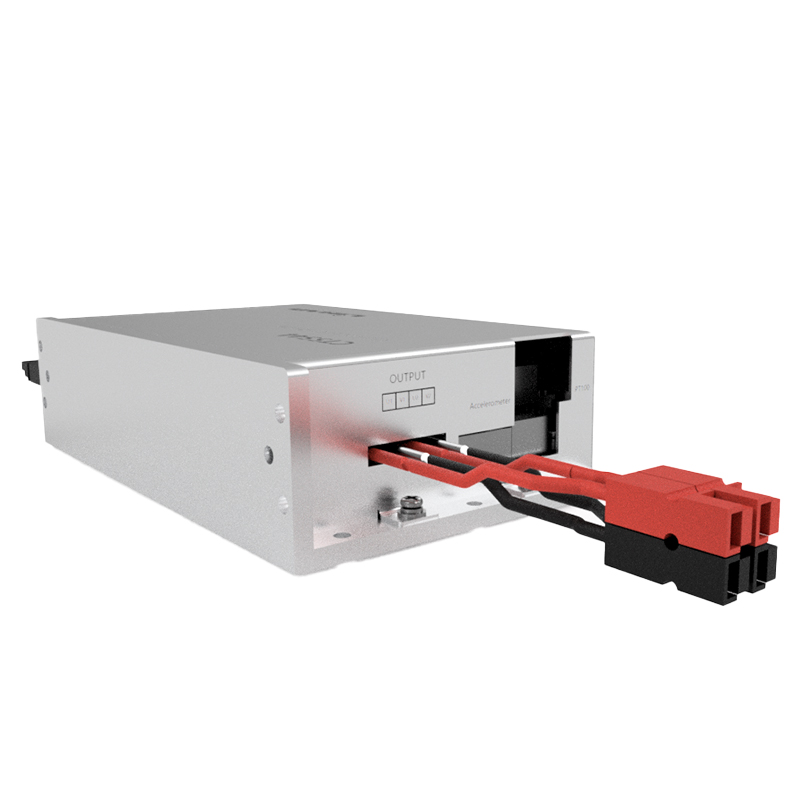

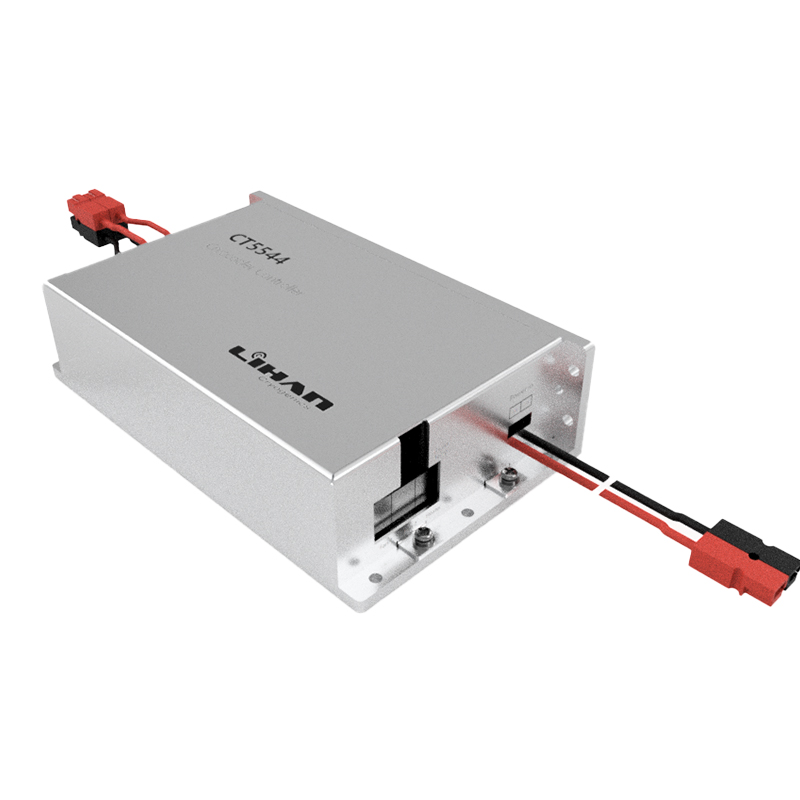

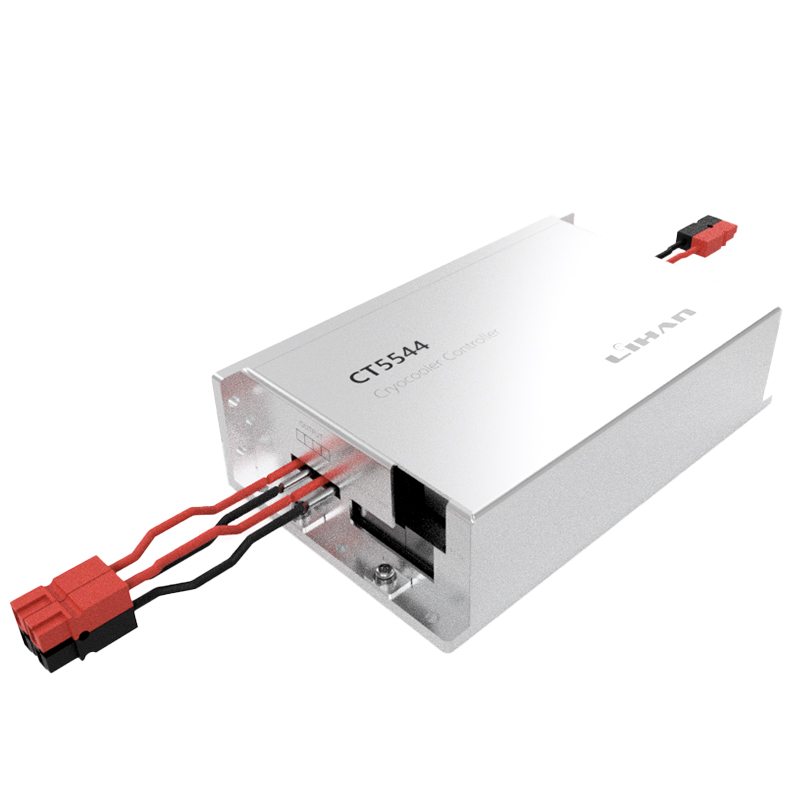

CT5544

500W / DC48V

Descriptions

48V voltage input to the cooler driver. DSP control is used to generate symmetrical two-way SPWM drive waveforms. Meet the requirements of low vibration and low noise of cryocooler.

Features

Dual symmetrical drive to minimize chiller vibration.
Integrated sensor interfaces for cold head temperature and reject temperature for ease to use.
Optional acceleration sensor for active damping, further reducing vibration.

Specifications

Input Voltage Range	48V±10%
Max. Input Power	700 W
Rated Output Power	500 W
Weight	0.719 kg
Regulatory Certifications	CE

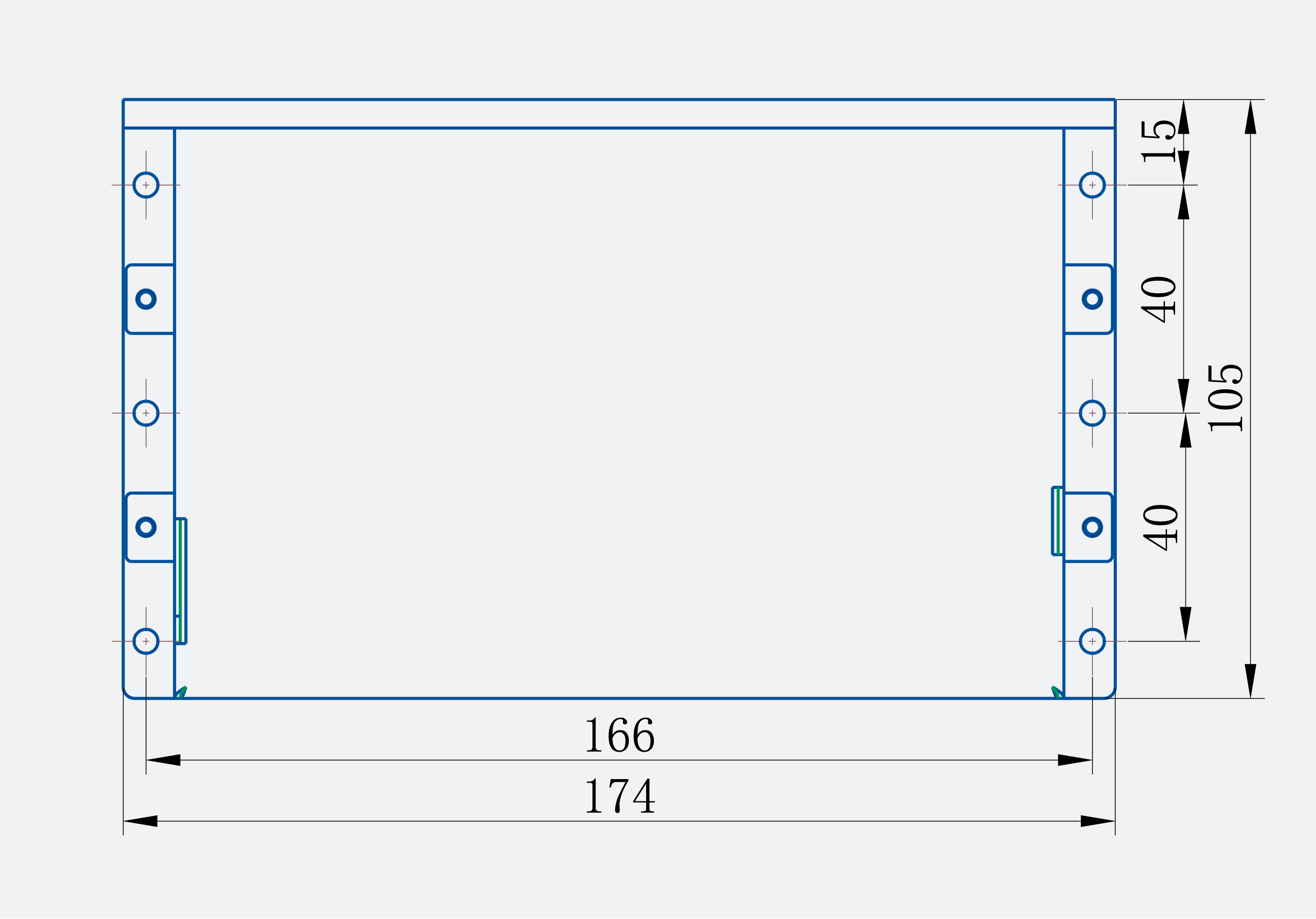

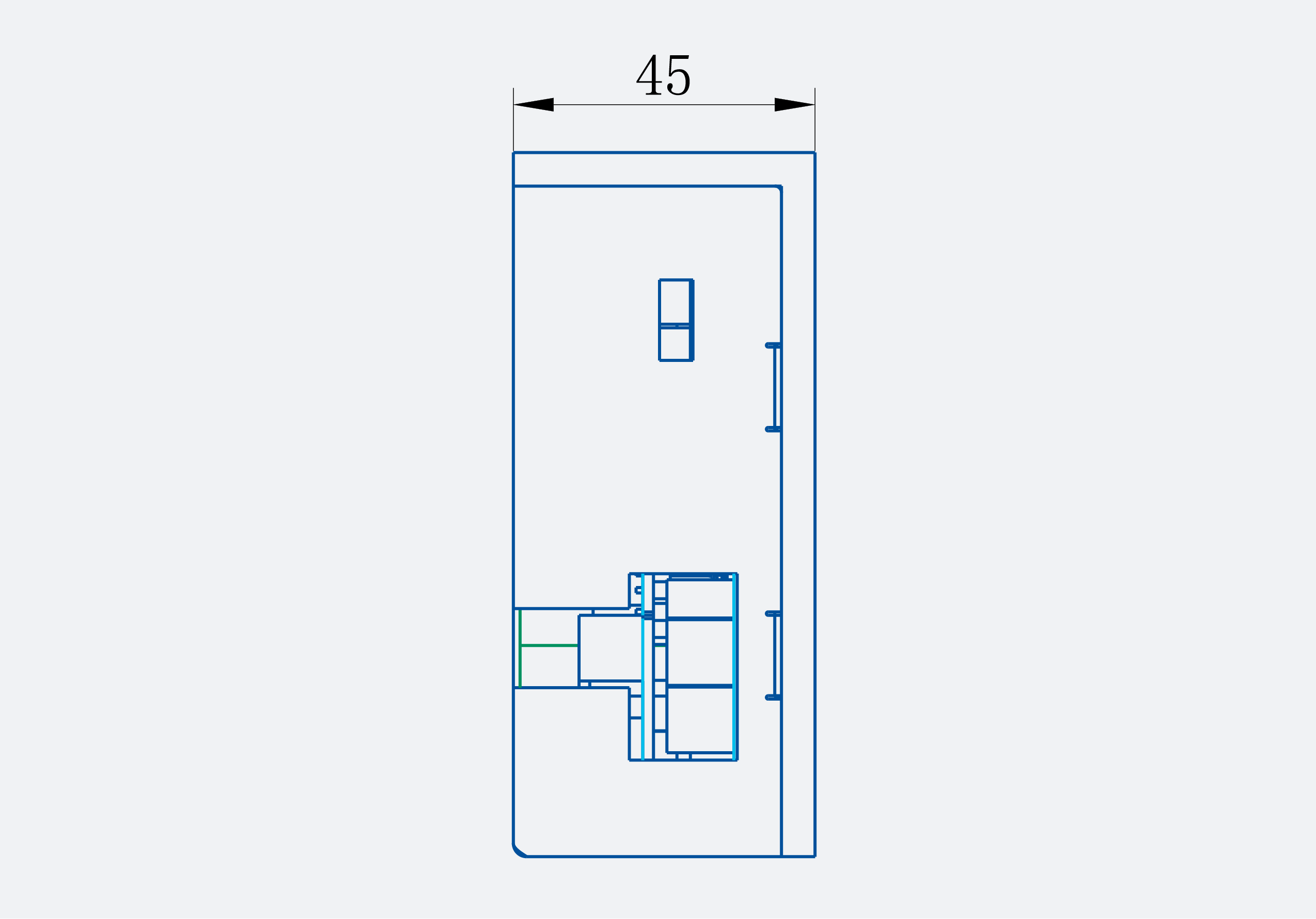

Demensitons (length X width X height)	174 X 105 X 445 mm³

Dimensions
