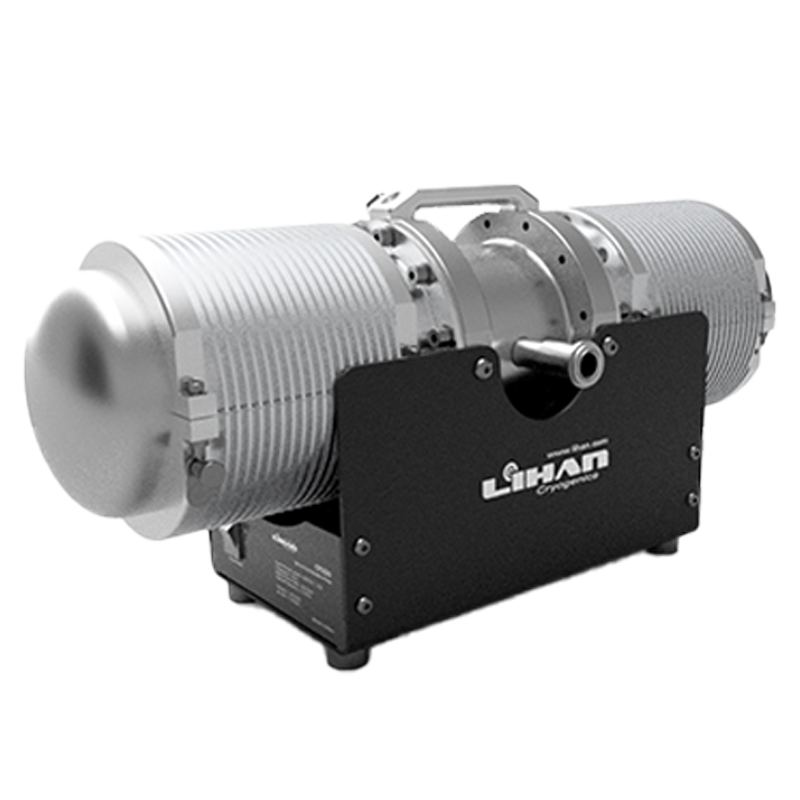

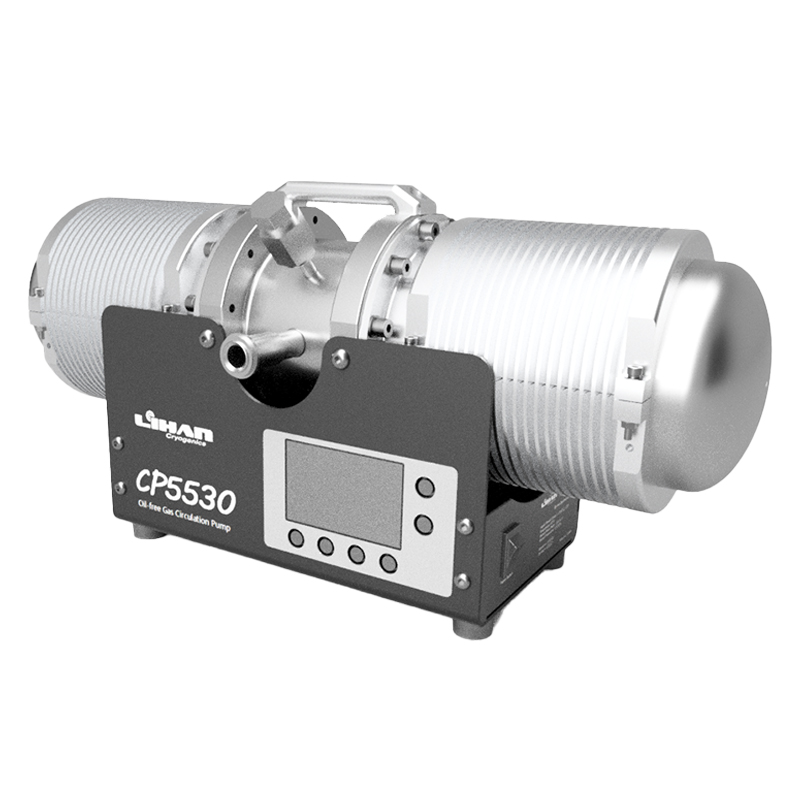

CP5530

Descriptions

The oil-free gas circulation pump has been developed based on Lihan's more than ten years of experience in linear oscillating motor development. Low vibration output and long life are achieved by using plate spring supported opposing pistons and gap sealing technology; The coils are completely isolated from the working gas, making the pump CLASS0 oil-free.

Features

Dual-opposed pistons driven by linear motors , low vibration.
The motor's coils are isolated externally, pistons are supported by plate springs, gap sealing, High reliability and completely oil-free.
Integrated controller for compactness and ease of use.

Specifications

Oil-free Grade	Class 0
Inlet Absolute Pressure	0.1 MPa
Outlet Absolute Pressure	0.1~0.3 MPa
Gas Displacement	100 [email protected] Outlet Pressure
Input Voltage	DC 48V
Rated Input Power	500 W
Ambient Temperature Range	-20~40 ℃
Weight	15 kg
Regulatory Certifications	CE

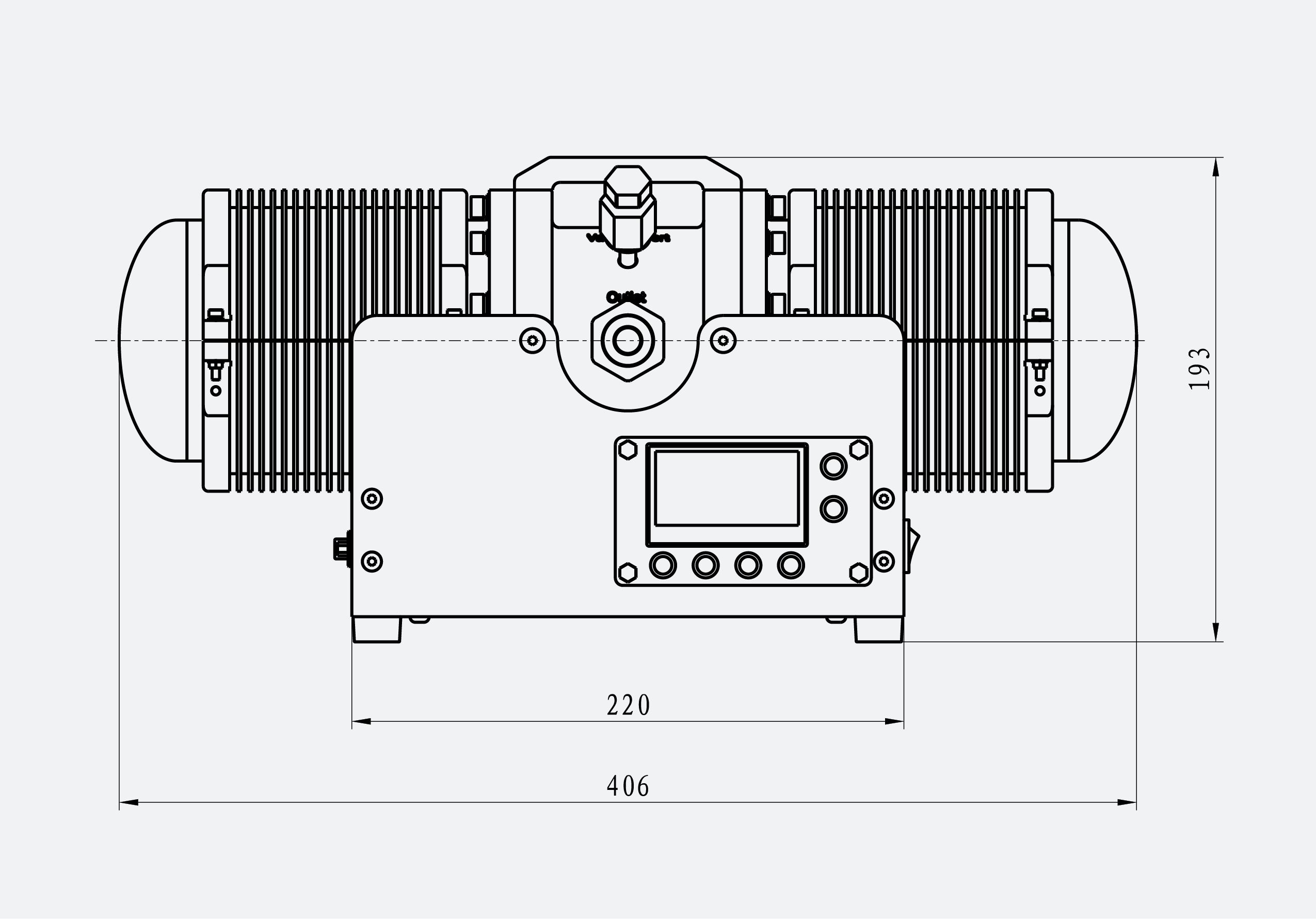

Dimension (Length x Width x Height)	406x 175x 193 mm³

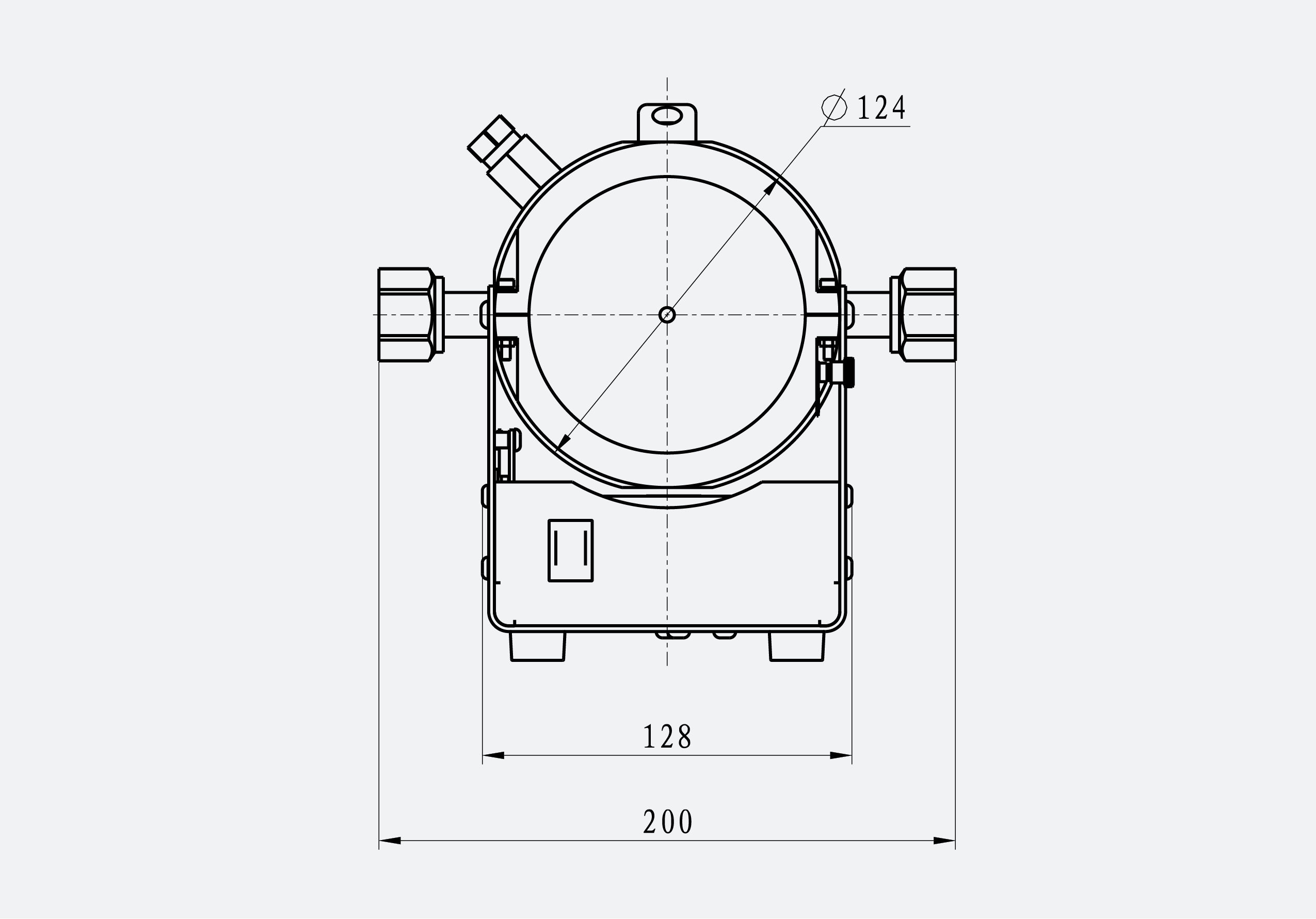

Dimensions
