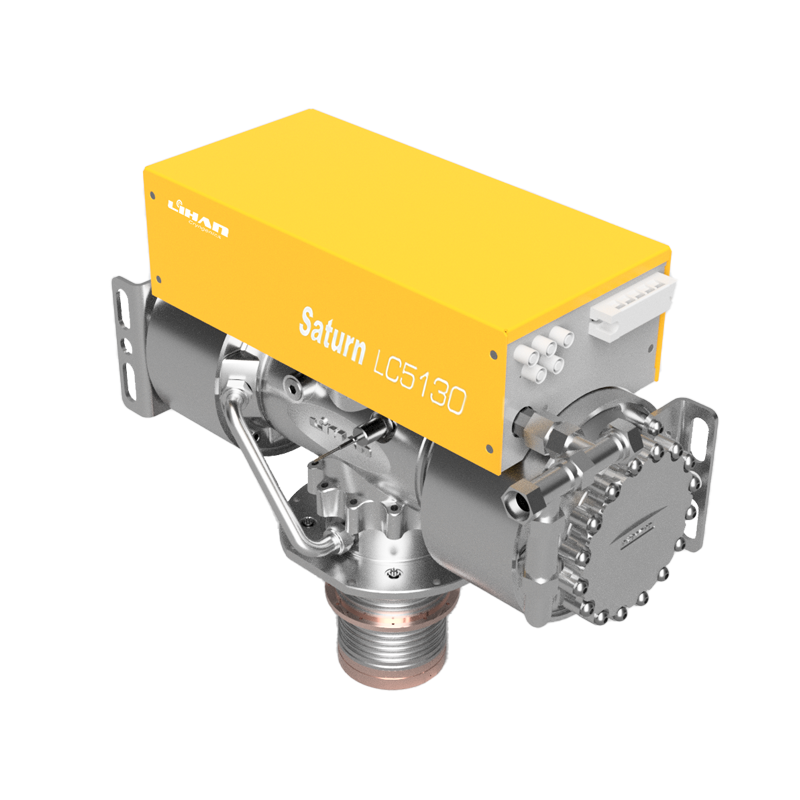

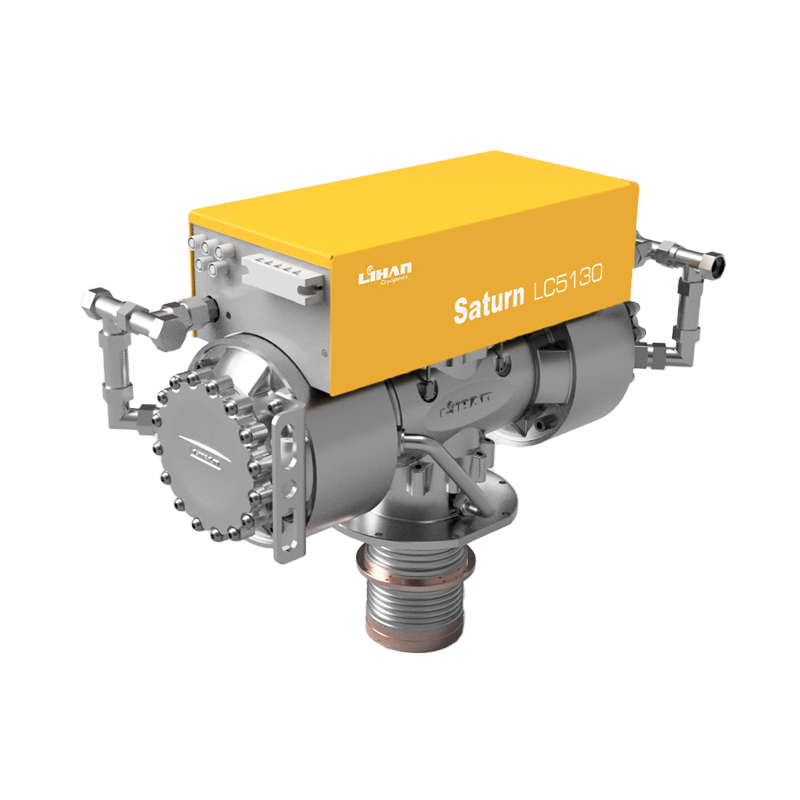

LC5130
90W@30K+40W@77K
Descriptions
LC5130 is an upgraded model of LC4830, developed as a two-stage cryocooler for 90 W @ 30 K operating conditions. It is designed for cryogenic applications requiring relatively high cooling capacity, including cryogenic gas liquefaction, high-power dry superconducting magnets, and superconducting power transmission cables.
Features
  • High efficiency for energy saving
  • Extremely compact low-temperature cryocooler structure for easy installation and use
  • Extremely low noise and vibration for wide range of applications
  • Shock-resistant and vibration-resistant, with a wide range of environmental temperature adaptability
  • Overturnable, suitable for mobile applications
Specifications
Cooling Capacity 90W@30K+40W@77K
Rated Input Power 6000 W
Power Supply AC 380V
Weight 100 kg
Ambient Temperature Range -40℃ ~ 50℃
MTTF(hrs Goal) 120000
