TC4189
12W@77K
Descriptions
A high-performance hybrid pulse tube cryocooler that uses a dual-opposed gas bearing piston, dual ambient displacer for phase shifting and recovering acoustic power. It combines the advantags of both pulse tube cryocoolers and Stirling cryocoolers and leads to a cryocooler with high reliability, high efficiency and low vibration at the cold head. This product is mainly designed for sensors in measuring instruments that require a low-temperature environment and can also be used in small gas liquefaction applications.
Features
  • Dual-opposed gas bearing pistons driven by linear motors,long lifetime.
  • Pulse tube cold finger integrated with dual-opposed ambient displacers, acoustic power recovery and high efficiency.
  • Integral configuration, easy installation and use.
  • Motor stator isolated from gas chamber, long lifetime and high reliability.
  • Maintenance-free.
Specifications
Cooling Capacity (20℃ reject) 12W@77K
Rated Input Power 240 W
Power Supply DC 48V(13A)
Weight 4.5 kg
Temperature Stability ±0.1 K
Ambient Temperature Range -20℃ ~ 50℃
MTTF(hrs Goal) 80000

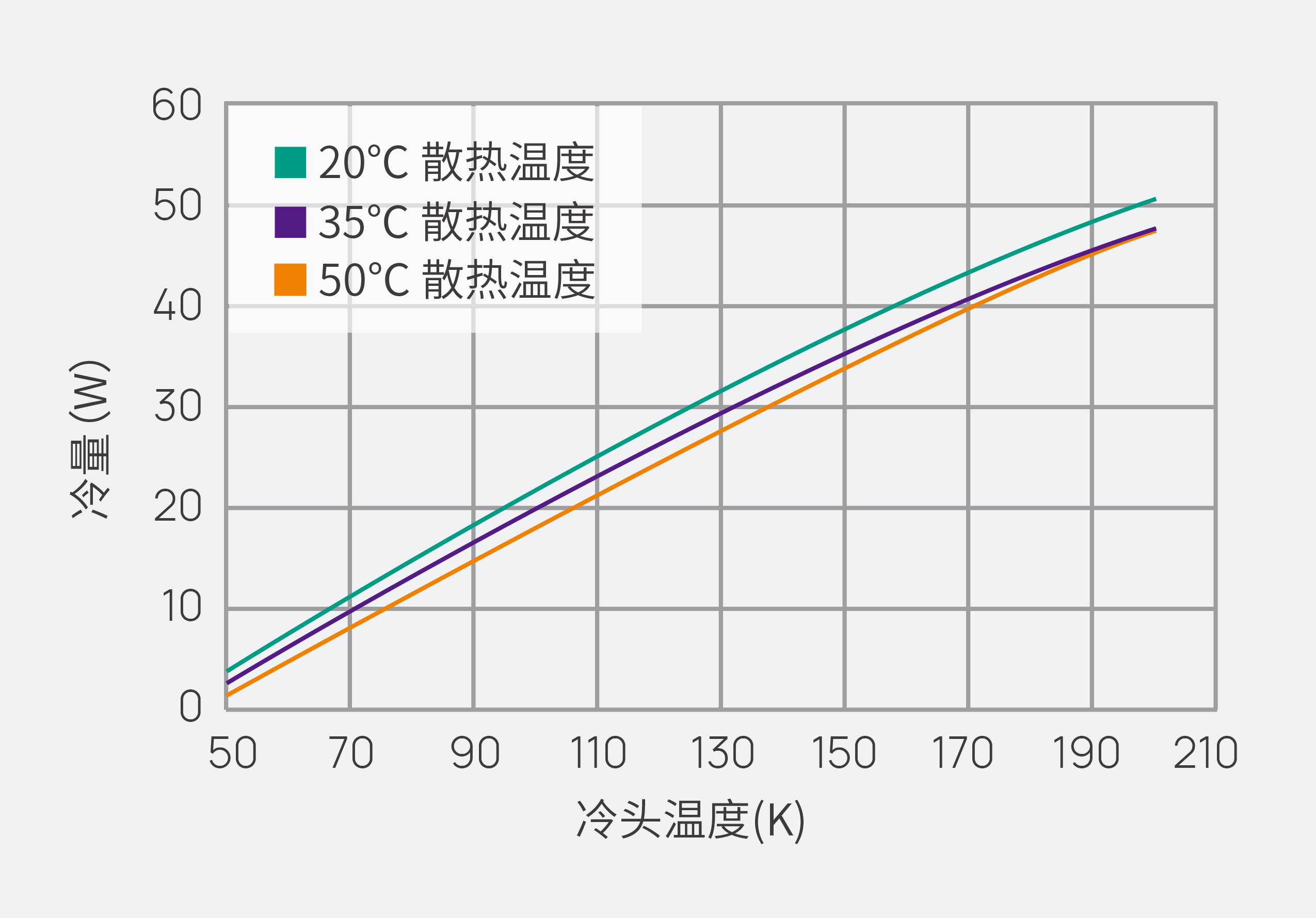

Typical Performance

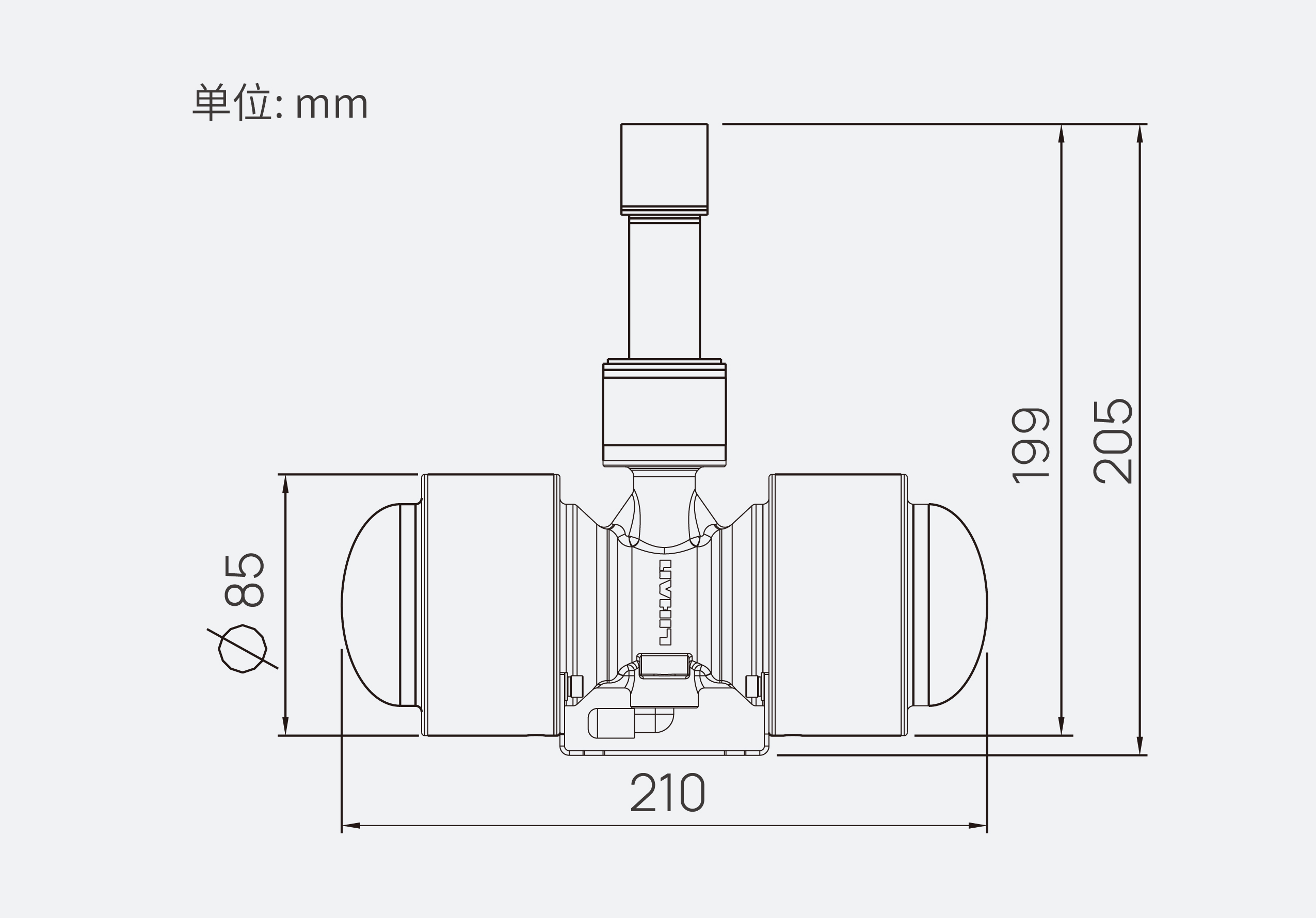

Dimensions
Cooler Application Sets
This is specailly designed for ease of use and is compatible with cryocoolers, providing 10W to 20W of cooling capacity at 77K , including models TC4188、TC4189 and TC4289. It includes an integrated heat pipe radiator and fan,  and allows for the external mounting of  the drive electronics. Users simply need to connect a 48v power supply to operate .
Drive Electronics
4500W / DC48V
Input Voltage Range
48V±10%
Max. Input Power
700 W
Rated Output Power
500 W
Weight
0.719 kg
Regulatory Certifications
CE
Demensitons (length X width X height)
174X 105X 45 mm³
