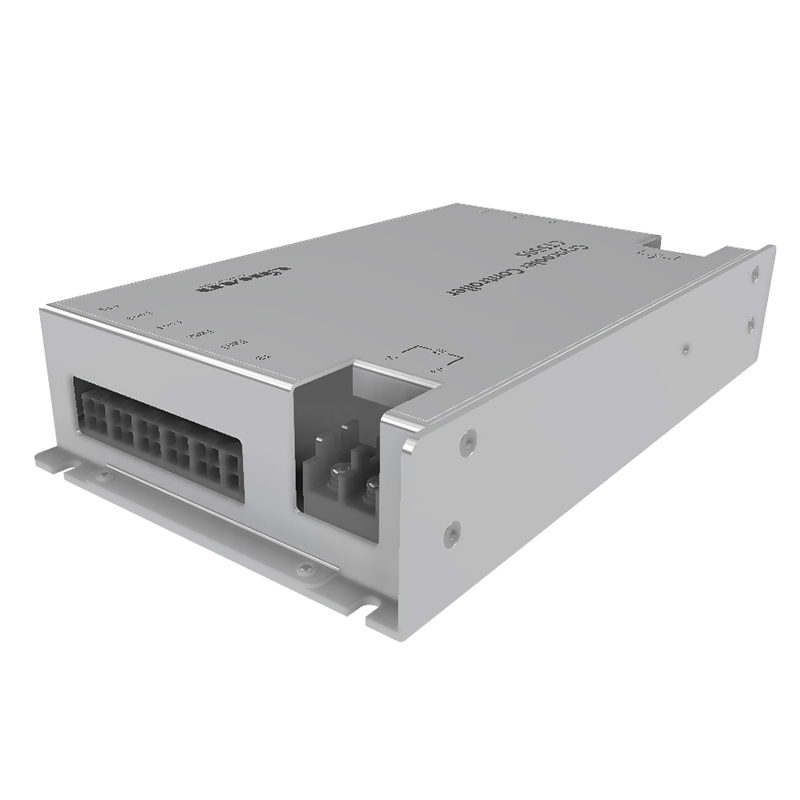

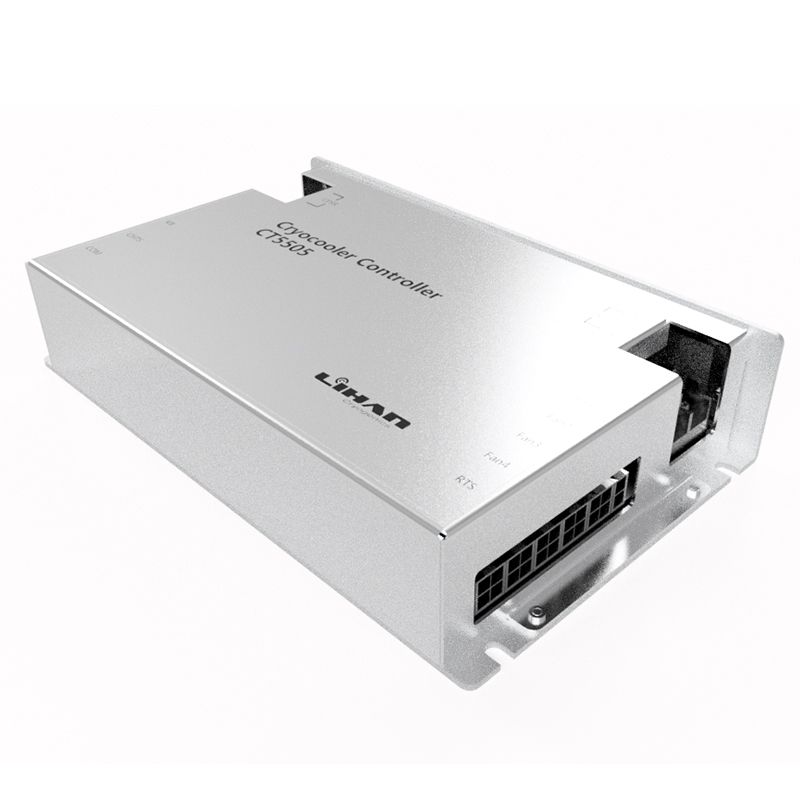

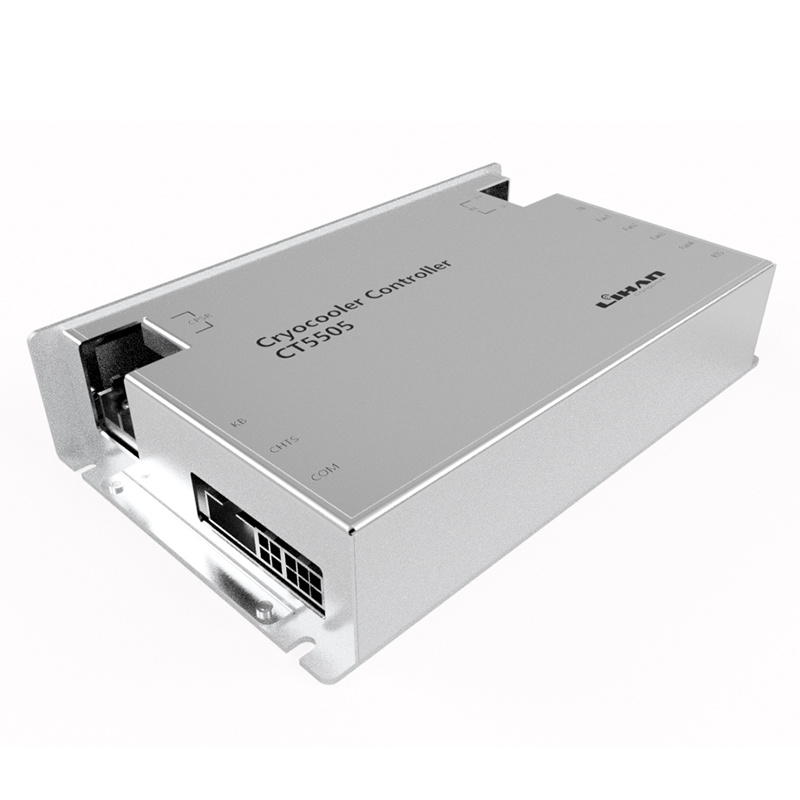

CT5505

400W / DC48V

Descriptions

48V input to the cooler driver. DSP control is used to output a single SPWM driver waveform.

Features

Integrated sensor interfaces for cold head temperature and reject temperature for ease to use.

Specifications

Input Voltage Range	48V±10%
Max. Input Power	600 W
Rated Output Power	400 W
Weight	0.575 kg
Regulatory Certifications	CE
Demensitons (length X width X height)	195 X 119 X 40 mm³

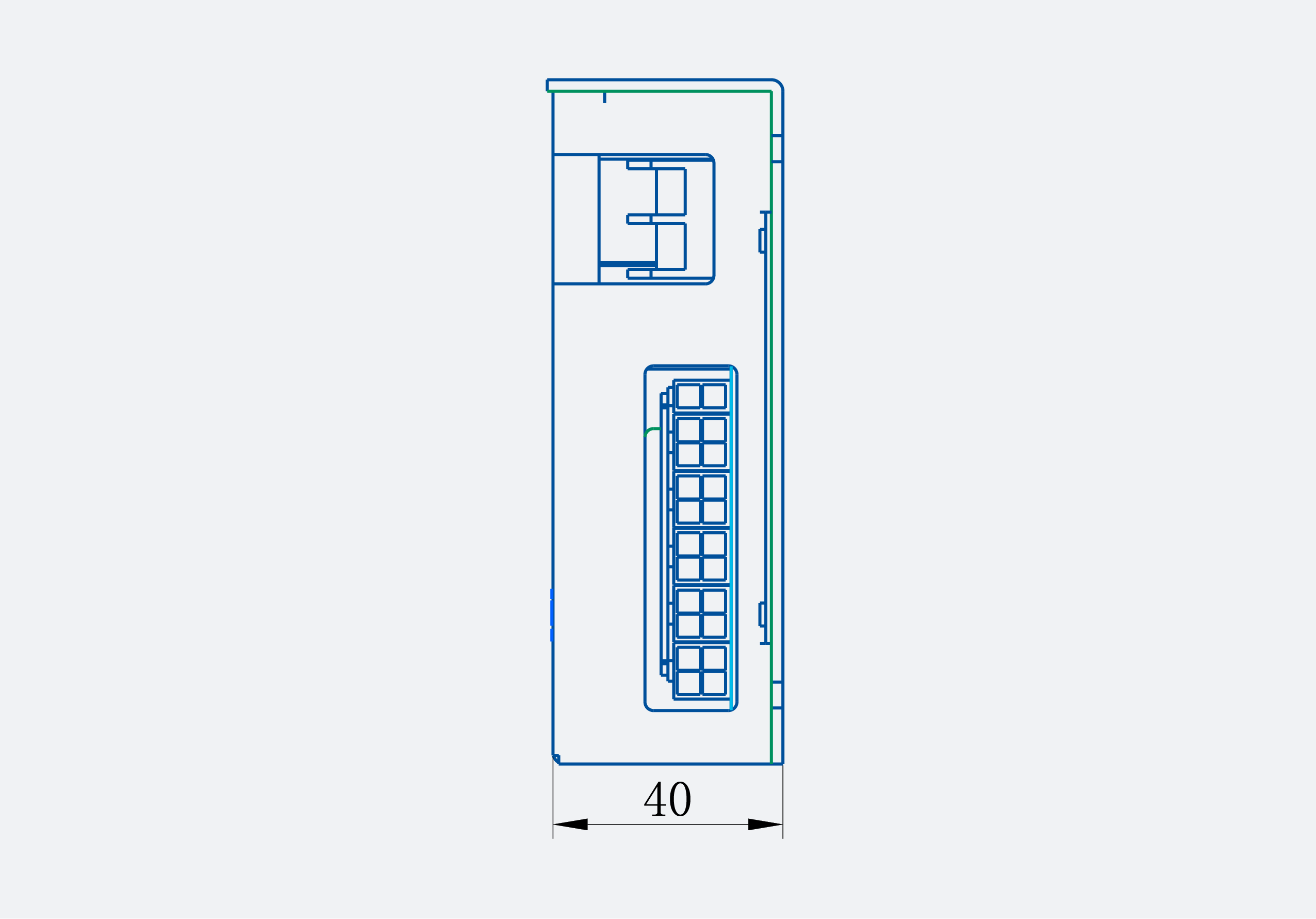

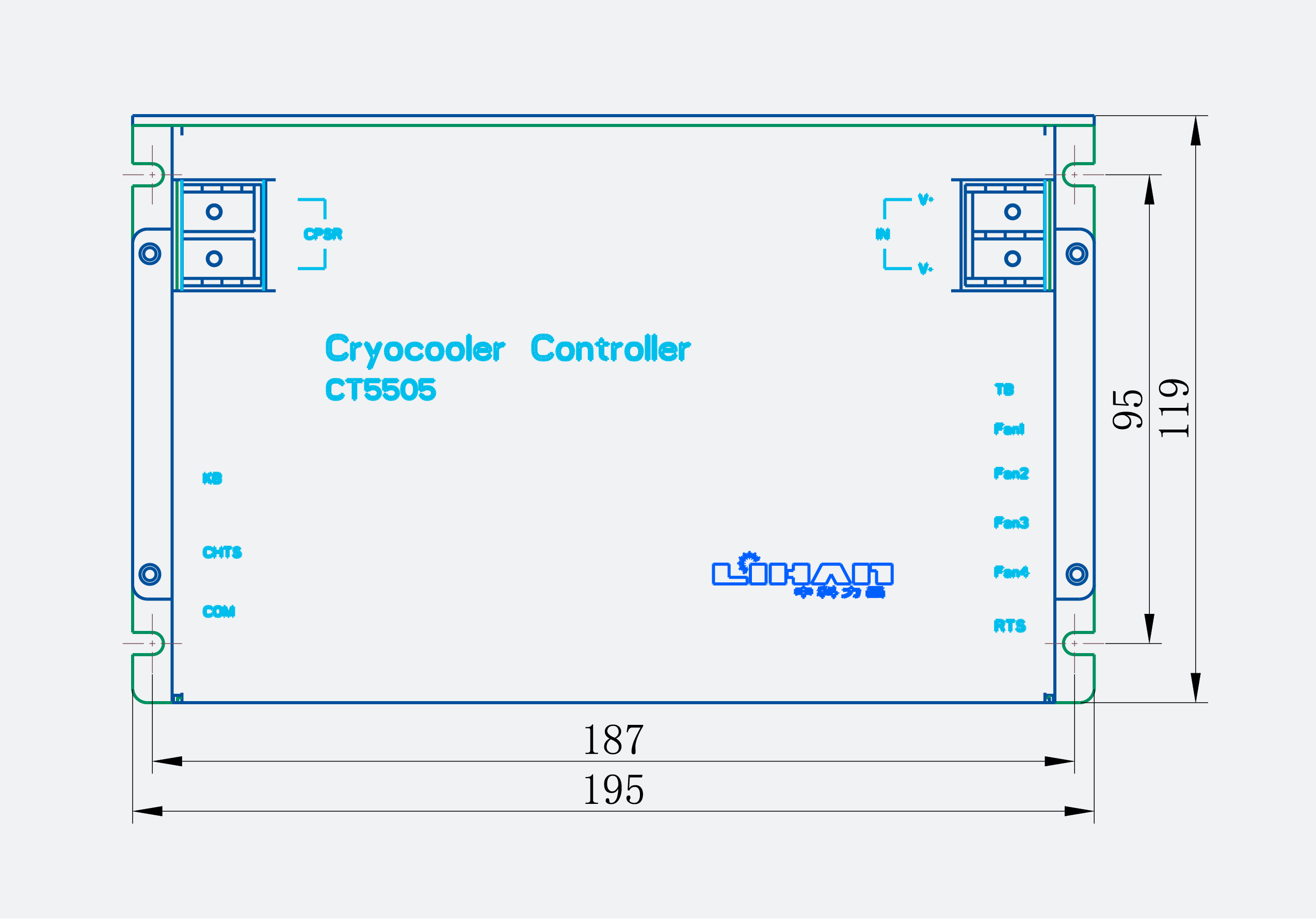

Dimensions
